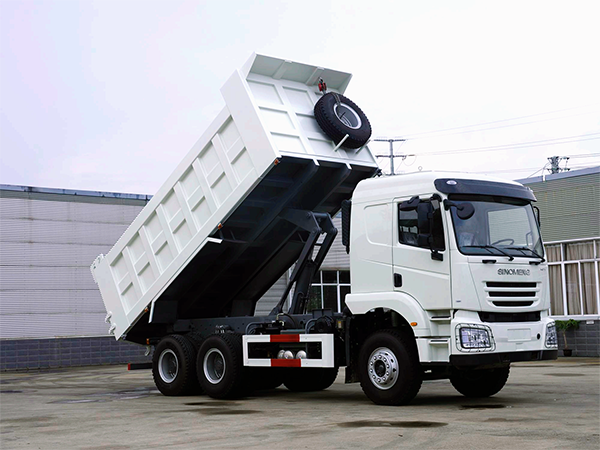

Sinomeng Dump truck

bull132

SINOMENG is a self-owned brand created by Zhengqian.In China,we specialize in a variety of trucks, including Dump Truck;Tractor truck ;Cargo truck; Box truck ,etc.Our product line also includes engines and semi-trailers, making us to offer you a one-stop solution for your needs

SINOMENG,Dump Truck;Tractor truck; Cargo truck

By reducing the center of gravity, improving the trafficability, its quality is comprehensively improved to transport in transportation field under the worst mining conditions.
Dump Truck;Tractor truck ;Cargo truck

Driving type        6×4
Wheelbase (mm)        3600+1350
Cab        All steel flat top cab LHD/RHD
Engine        GD615.47(371HP) Euro2
YUCHAI YC6MK400 Euro 2-5
Transmission        SM19710 Manual 10 forward/2 R
FAST 10JSD220B  10 forward/2 R
Clutch        Ф430
front/rear axle        Front SF9 9T forged axle/rear SC16 wheel reduced cast steel axle
Frame        850 × 300 (8+8) partial three-layer
Suspension        Front 10 and rear 12 multi leaf spring four riding bolts
Fuel tank        300L aluminum alloy oil tank
Air conditioner        Manual electric control thermostatic air conditioner
Wheels and tires        12.00R20/12.00R24 (Optional)
Container        Size: 5600 * 2300 * 1500mm, mid-lifting bottom 8mm, side 6mm
