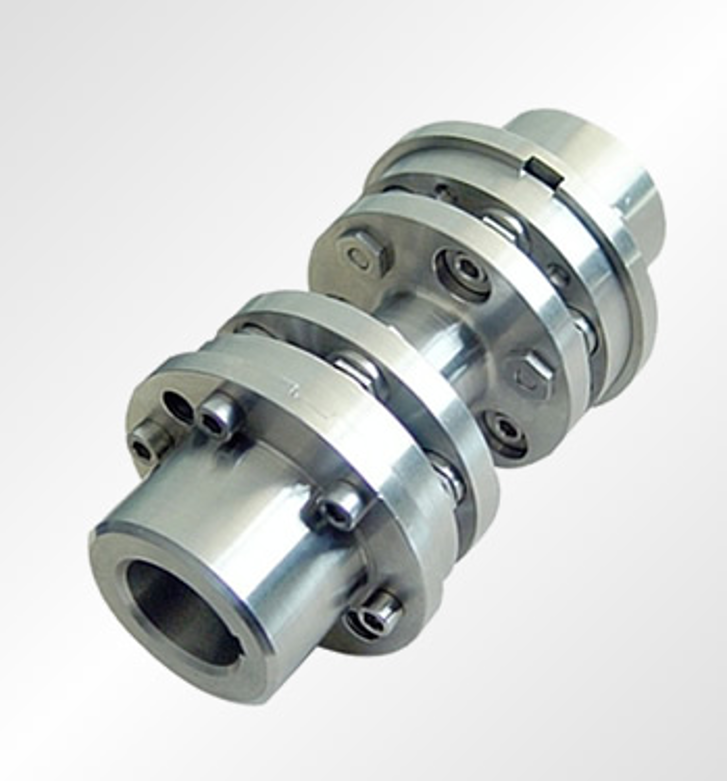

Series TMG （TMG系列膜片联轴器）

Steel disc-pack coupling in modular system in 14 sizes with diameters from 40 mm to 345 mm; other sizes for all applications on request; hub–hub, hub–spacer–hub, hub–flange, flange–flange and standard attachments can all be combined in each size; maintenance-free; power transmission through flexible spring plates in double cardan arrangement

Manufacturing and material

Steel hub/flange, machined on all sides

Banks of springs made out of cold-rolled stainless steel

TECMEN couplings in the TMG series are used in turbo-compressors, turbines, printing presses, generators, pumps, chillers, mixers, fans, synchronous motors, machine tools and general engineering.

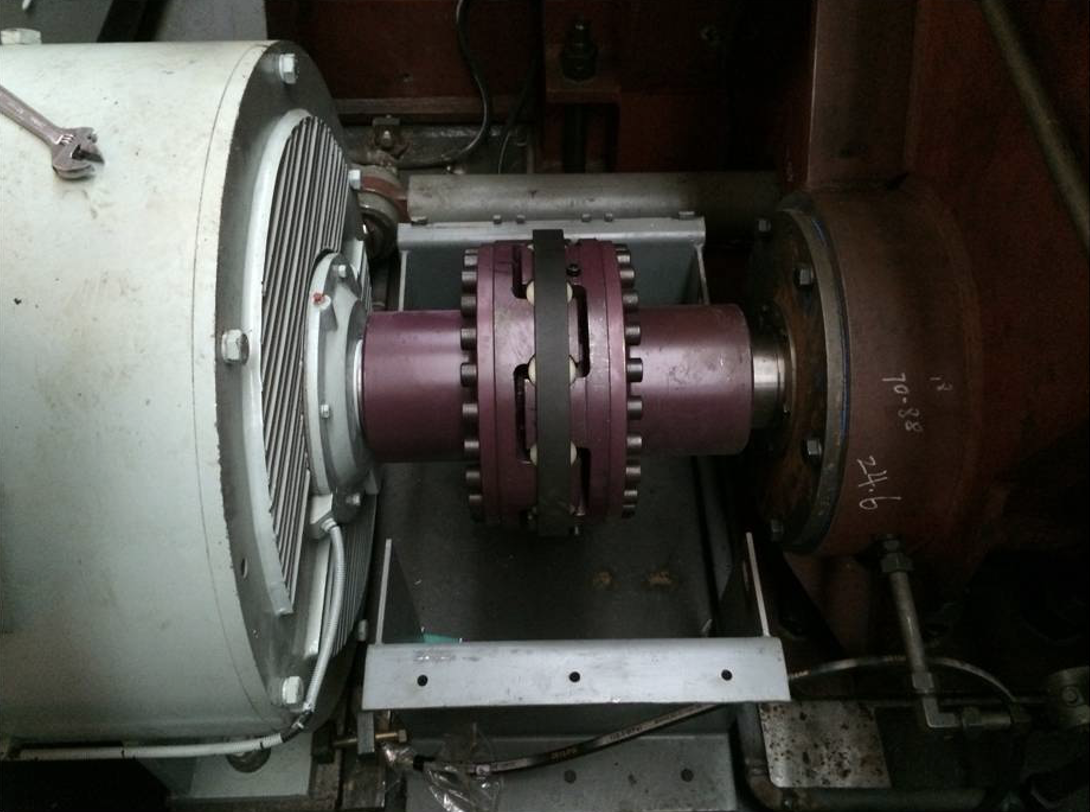

Series TMB （TMB系列弹性高效联轴器）

High-performance flexible coupling in modular system; 11 sizes with diameters from 300 mm to 900 mm; hub–claw ring and standard attachments can all be combined in each size

Plug-in coupling with modular design, flexible elements can be radially replaced simply by moving the retaining ring; power transmission through pressure on stressed elastomers

Manufacturing and material

TECMEN couplings in the TMB series are used for instance in power stations, cable cars, compressors and cement mills.

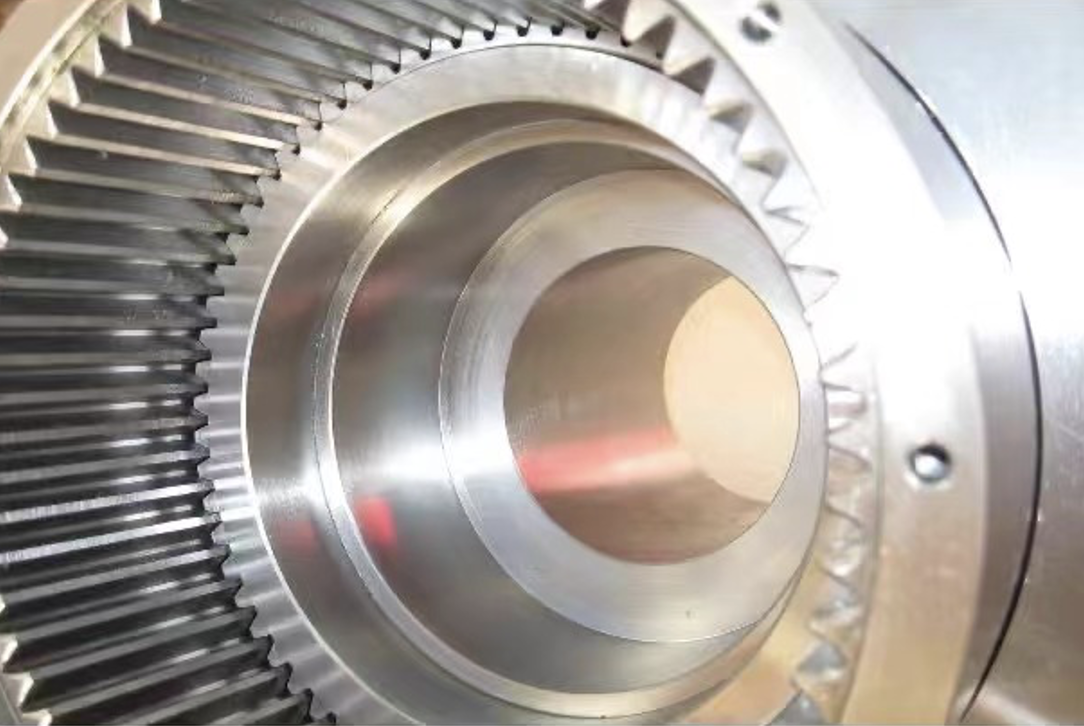

Series TMZ （TMZ系列齿式联轴器）

Gear coupling in a modular system in 21 sizes with diameters from 70 mm to 790 mm: double cardan, or double cardan with spacer or intermediate shaft, power transmission through grease-lubricated gear teeth

Manufacturing and material

Forged steel hub/sleeve, machined on all sides

Milled teeth

TECMEN couplings in the TMZ series are used in turbo-compressors, straightening machines, pumps, mixers, mills, compressors, agitators, steel mill drives, machine tools and general engineering

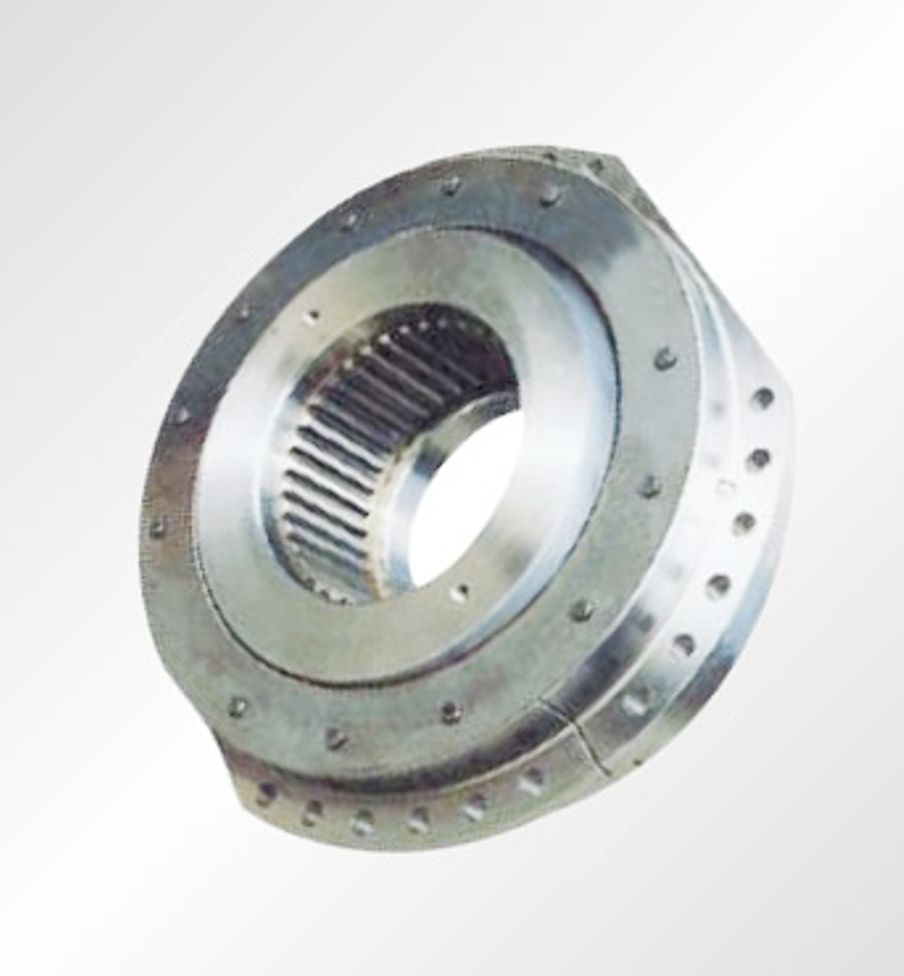

Series TMT（TMT系列卷筒联轴器）

Barrel coupling in a modular system in 16 sizes with diameters from 160 mm to 730 mm, power transmission through shear-stressed barrel rollers

Manufacturing and material

Forged steel hub/sleeve, machined on all sides

Barrel rollers made out of bearing steel

TECMEN couplings in the TMT series are used in cable drum units in mechanical hoists in theatres and cranes.

Manufacturer: Jiangsu Tecmen transimission(江苏泰克曼传动设备有限公司）:www.jstecmen.com

Contact: 洪梅（Miss Hong)

Email:18182827@qq.com  Cellphone: 13917178448
